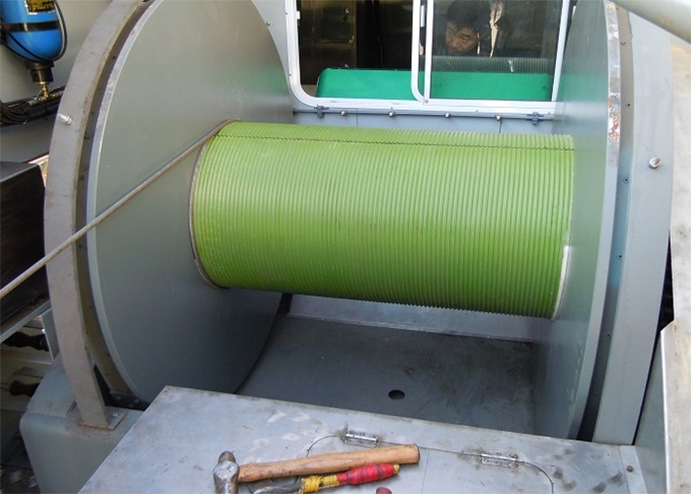

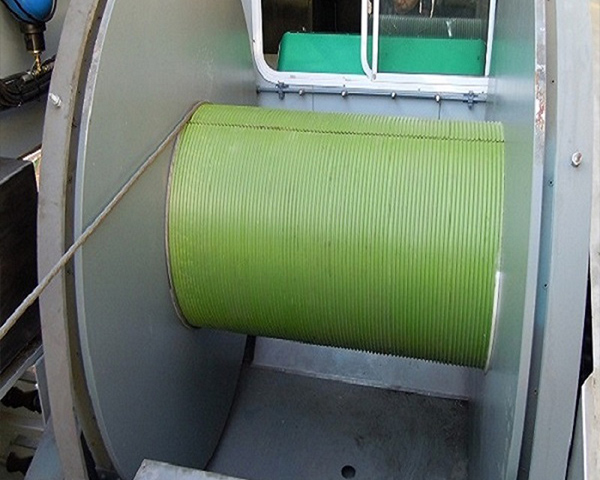

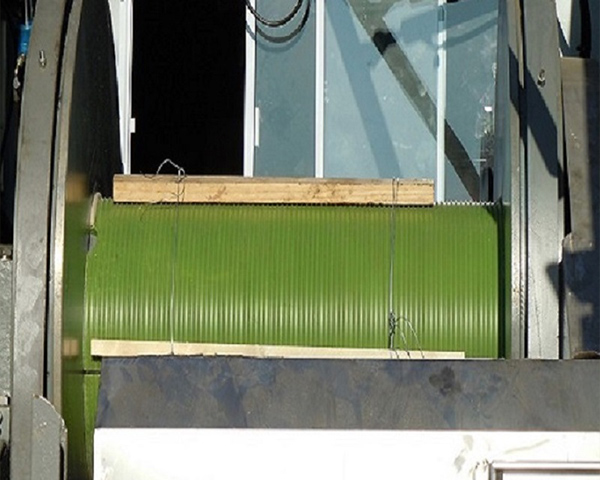

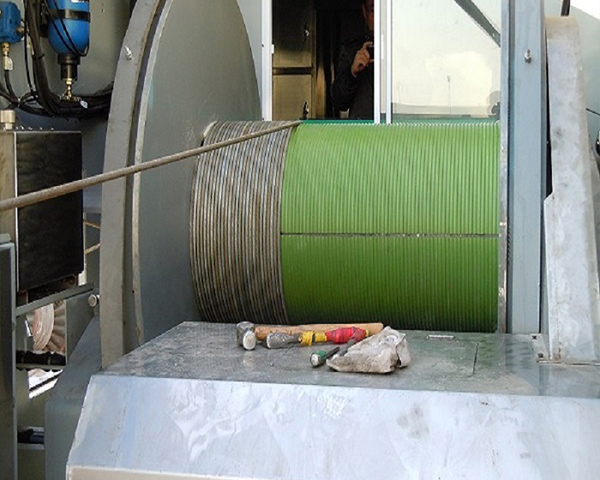

Polymer Nylon Materail Energy Saving and Insulation LBS Sleeves for Lifting Winch

Advantage of the sleeve

Our company developed LBS rope groove has obvious advantages. LBS rope groove suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the winch drum, the wire rope winding will effected by the winch drum has a large opening angel, bottom diameter selection, position of guide block, rope structure, rope groove spacing, rope groove the spiral Angle of the parallel section and the climbing section, so, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

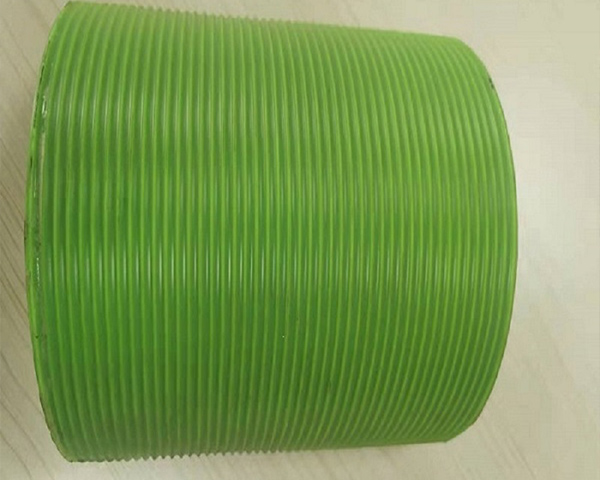

The material of  the sleeve

For efficiency and cost saving, the polymer drum sleeve developed and produced by our company adopts linear structural material with molecular weight of more than 1.5 million (the molecular weight of ordinary material is only 200,000 ~ 300,000) to process LBS rope groove, which is closely connected with the drum by spiral thread.

Advantage of nylon material

High molecular nylon material light weight, impact resistance, low temperature resistance, self-lubrication, absorption of impact energy and other comprehensive characteristics. Polymer drum skin, mainly supporting imported drum and domestic large, super large drum drum hoist, prevent wire rope extrusion or bite wire rope damage, so that the wire rope can smooth transition between the layers.
