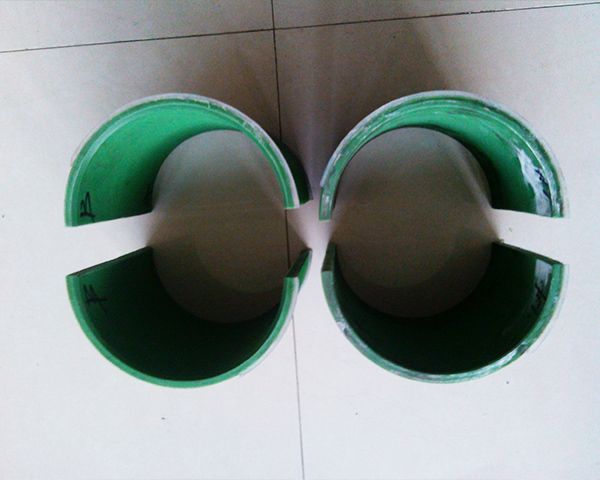

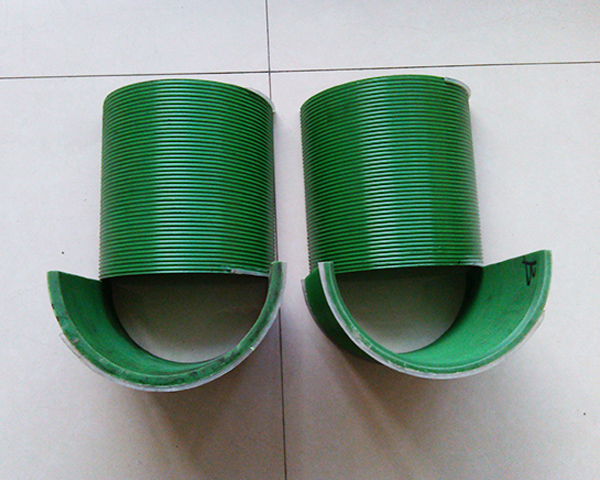

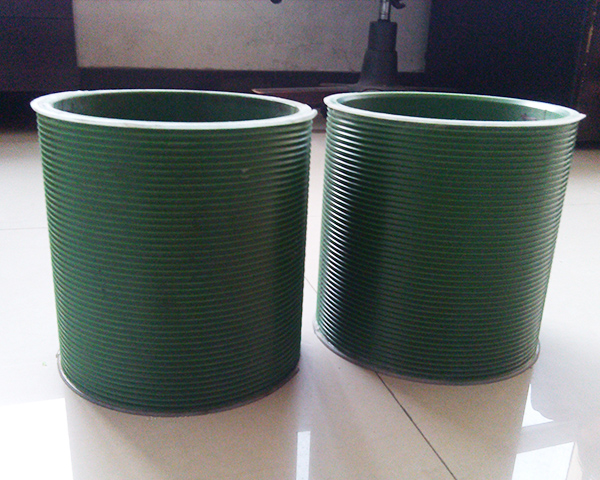

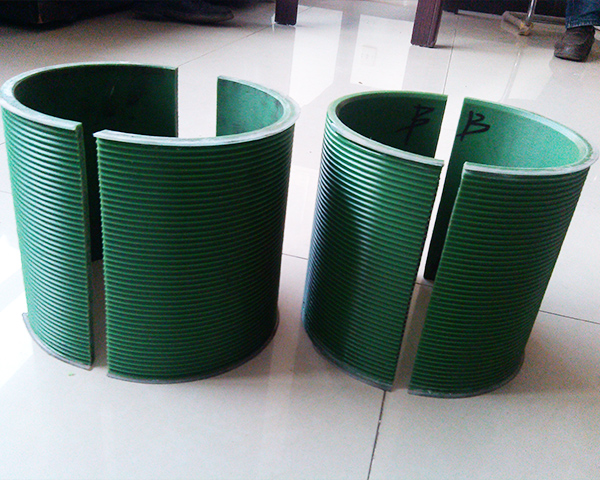

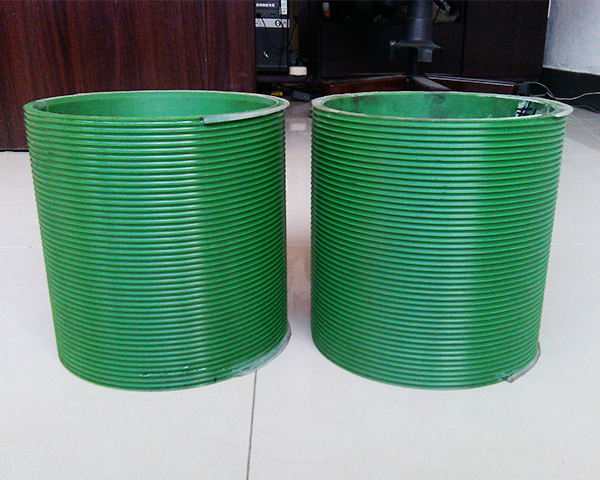

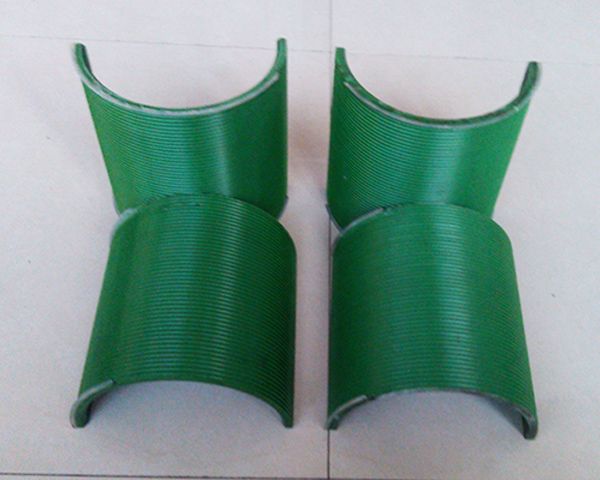

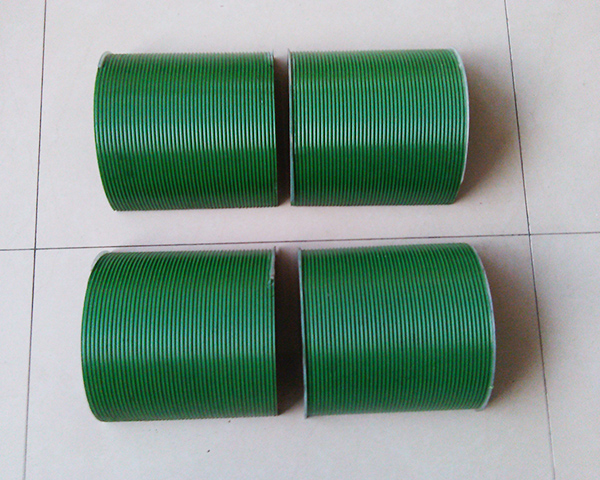

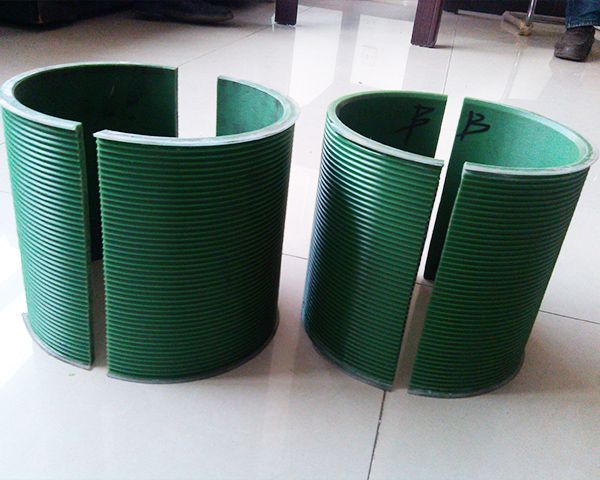

Materials of the sleeves:High Polymers nylon
The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch
Product Details
| Product name | LBS rope grooved sleeves |
| Drum Quantity | Single or Double |
| Drum Design | LBS Groove |
| Material | High Polymers nylon |
| Size | 2500mm length |
| Application Range | offshore |
| Power Source | Electric and hydraulic |
| Rope Capacity | 300M |
Features
· Product Name: Nylon sleeves
· Rope diameter: 3mm-80mm
· Slot direction: Left Or Right
· Customize or not: Can Be Customized
· Category: Winch Parts
· Use: Winding Wire Rope
· LBS system: Can be applied for winding wire rope
· Grooved sleeves: Grooving the rope into the drum
· Wound wire rope: Winding wire rope with the winch drum
Product Application
According to the current situation of our factory's production of LBS rope drum and winch, the industry has been successfully applied as follows:
1. Petroleum industry: oil drilling rig, oil drilling rig, oil workover rig, oil extraction truck and other winches (including two-half rope groove plate, integral; LBS
2. Crane: bridge crane, tower crane
3. Winch: building wall wiping machine, lifting crane
4. Construction machinery: rotary drilling rig, pile machine tower crane
5. Marine machinery: crane, winch
Necessary parameters for production
1. Drum out diameter:
2. Width between flanges:
3. Rope or cable diameter:
4. Length of rope or cable to be accommodated:
5. Direction of wire rope entry:
6. Type of rope entry through flange or Through barrel:
7. Material and requirements of the sleeves
8. A detailed drawing of the sleeves if possible:
