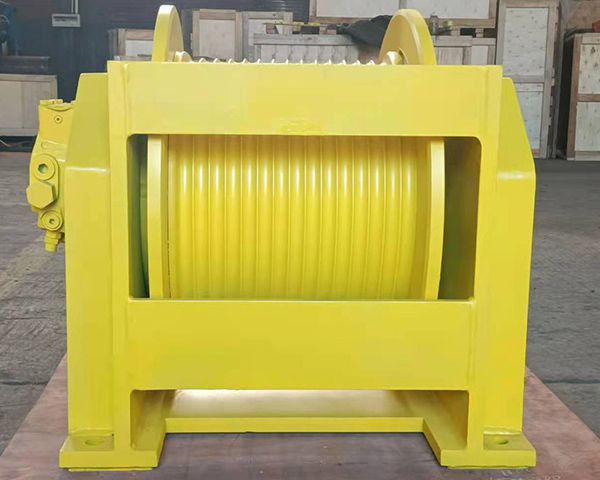

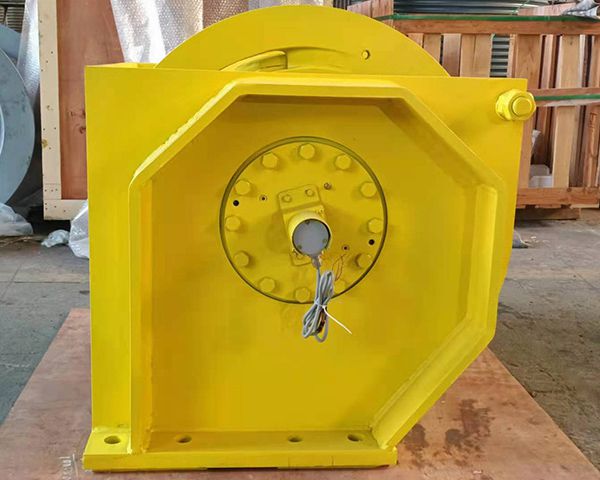

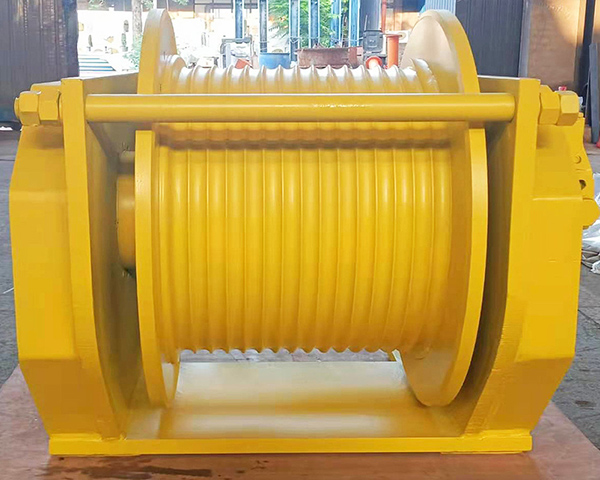

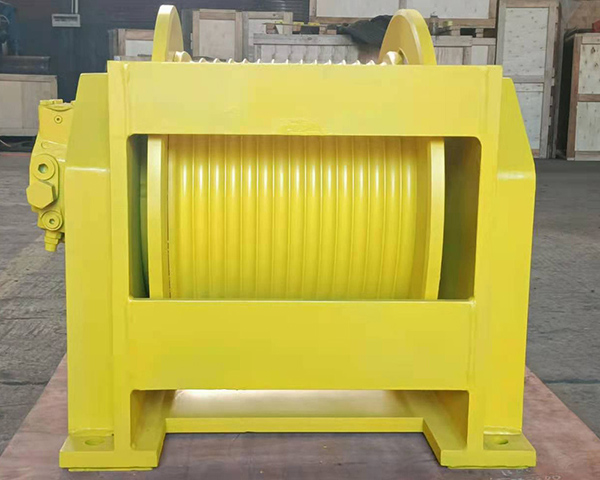

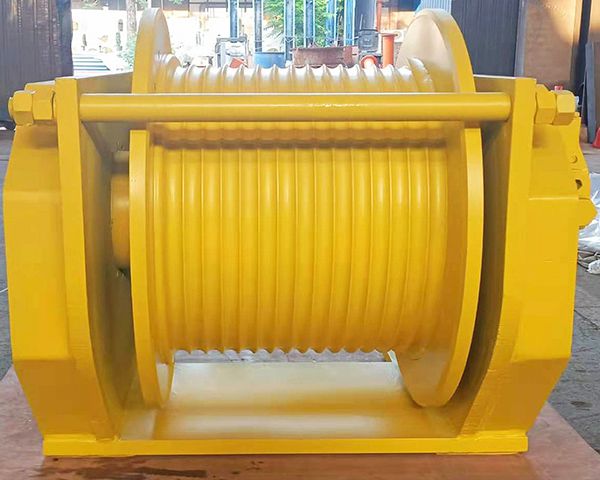

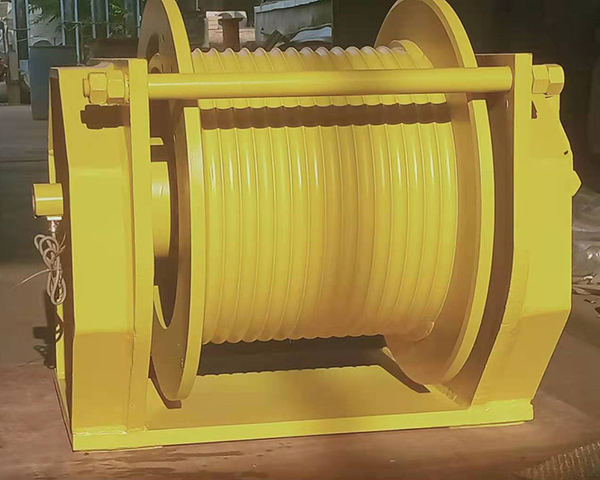

Hydraulic crane winch,material is alloy steel, rope capacity is 200m, the brake type is belt brake and Multiple disc brake, the The power rating is 10T.
Description
Hydraulic winch is mainly rated load larger winch, under normal circumstances more than 10T to 5000T winch design hydraulic winch.
Its structure is mainly composed of hydraulic motor (low speed or high speed motor), hydraulic normally closed multi-disc brake, planetary gear box, clutch (optional), drum, supporting shaft, frame, rope press (optional) and so on. Hydraulic motor has high mechanical efficiency, large starting torque, and can request according to the working condition of flow distribution with different, still can design according to need directly integrated in the motor oil distribution valve group, such as belt balance valve, the overload valve, shuttle valve, high pressure control reversing valve or other performance of the valve group, brake, planetary gear box installed directly in the drum, Drum, support shaft, frame design according to mechanical requirements, the overall structure is simple and reasonable and has enough strength and rigidity. Therefore, this series winch has the characteristics of compact structure, small size, light weight and beautiful appearance, and has the characteristics of good safety, high efficiency, large starting torque, good low-speed stability, low noise and reliable operation in performance.
Parameter
| Product name | Hydraulic crane winch |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min | As customes |

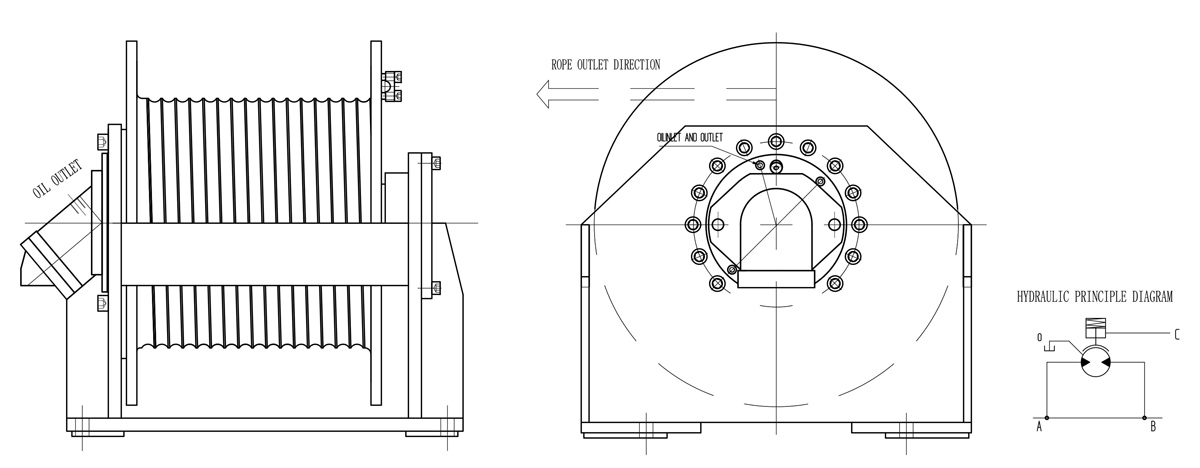

Product Outline Drawing:
Product Parameters
| Model | Pull force(KN) | Rope speed(m/min) | Drum bottomDiameter(mm) | Difference of working pressures(Mpa) | Rope capacity (mm) | Diameter of steel rope(mm) | Model ofhydraulic motor |
| LBSW-DN10-10-00 | 10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 | C7-5.5 |
Main Export Markets:
Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe
FAQ:
Q1. Are you a factory or a trading company? What can you provide?
We are a factory locates in industrial belt of Shijiazhuang City, our main products are hydraulic orbit motors, hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T, Paypal, Western Union, also you can pay through Alibaba trade assurance.
Q3.How about the warranty?
We promise to supply high quality products and professional after-sales service. We can supply technical support as long as you need, beyond that, we also offer six months of warranty.
Q4. If we don't find what we want on your website, what should we do?
You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.
Q5. Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
