Summary of Winch
Winch, winding wire rope or chain with the drum to lift or pull heavy lifting equipment, also known as winch. Winch can be used alone, also can be used for lifting, road construction and mine lifting machinery components.
Product Structure:

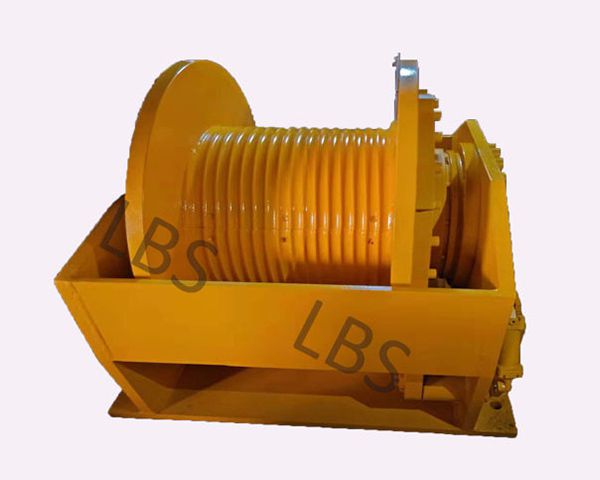

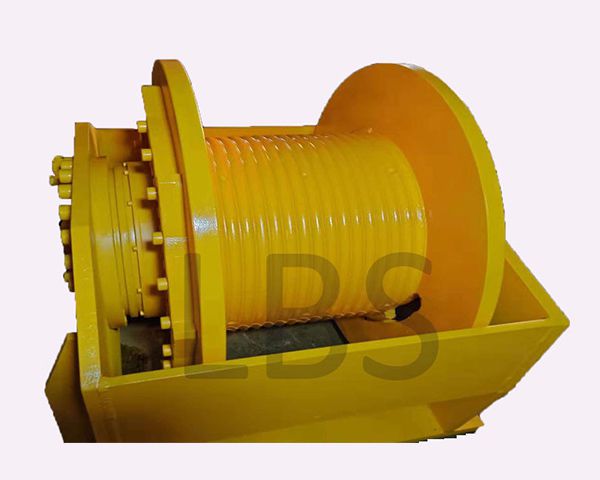

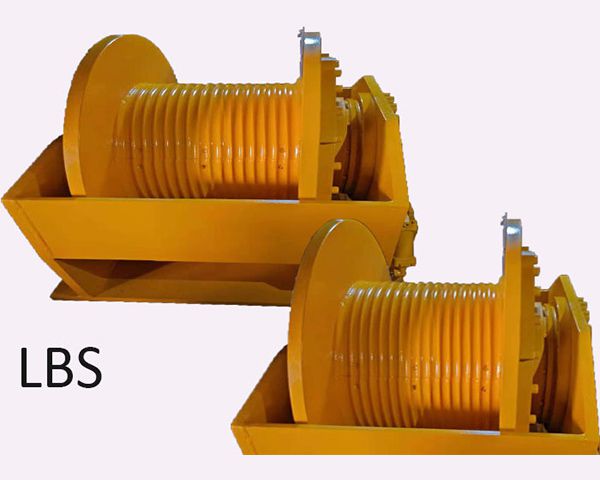

LBSW Hydraulic winch primarily consists of four parts, including oil distributor, hydraulic motor, brake, drum and stand. The oil distributor inciuled one-way balance valve, brake and high pressure shuttle valve.
Good Equipment Standard of Winch
The sound standard of winch should be carried out according to the corresponding national standard.
The condition of the winch belongs to the condition of the equipment. Its basic contents include: (1) good equipment performance; (2) Normal operation of equipment, such as parts wear, corrosion degree does not exceed the technical standards, lubrication system is normal, equipment operation without overtemperature, overpressure phenomenon; (3) The consumption of raw materials, fuel and oil is normal, and there is no leakage of oil, water, steam and electricity. Specific standards should also be set for different types of equipment.
Product Overview:
LBSW hydraulic winch has its own valve group, so that is makes hydraulic system more simple and increases stability of the transmission devices. The hydraulic winch valve group of winch solve the problem of empty hook vibrating and fall again during hoisting. So hydraulic winch can lift and put down stably.
The winch drum can be used no groove, spiral groove and lebus grooves, It meets the requirements of single layer spooling and multi-layer spooling. LBSW hydraulic winch is high efficiency, low energy consumption, low noise and besutiful form.

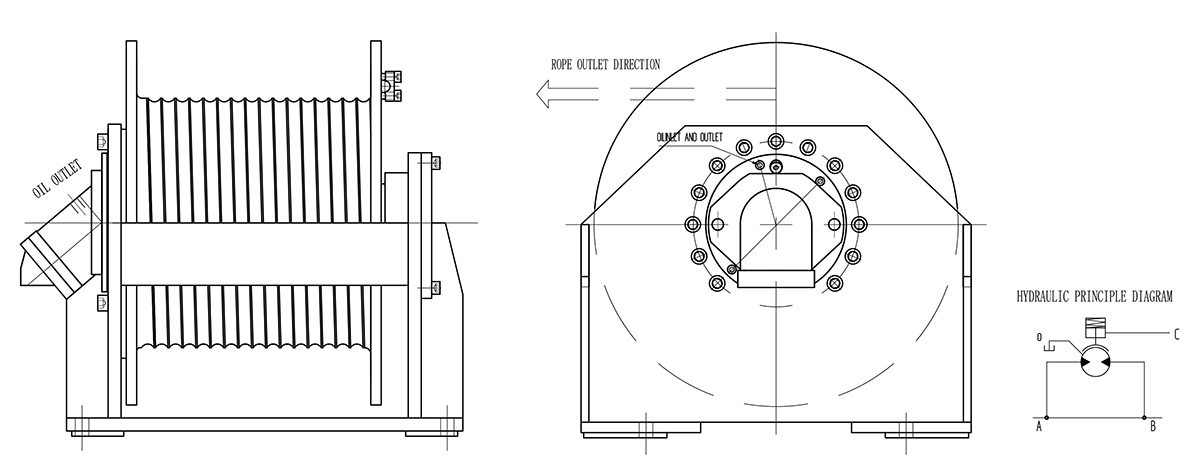

Product Outline Drawing:
Product Parameters
| Model | Pull force(KN) | Rope speed(m/min) | Drum bottomDiamete(mm) | Difference of working pressures(Mpa) | Rope capacity (mm) | Diameter of steel rope(mm) | Model ofhydraulic motor |
| LBSW-DN10-10-00 | 10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 | C7-5.5 |
Main Export Markets:
Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe
FAQ:
Q1:What's your terms of payment?
A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.
Q2:What's your terms of delivery?
A. EXW, FOB CIF CFR etc
Q3:How about your delivery time?
A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.
Q4:Can you produce according to the samples?
A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
Q5: What's your sample policy?
A. We can supply sample, but the customer have to pay the sample cost and courier cost.
Q6: Do you test all your goods before delivery?
A. Yes, we have 100% test before delivery.
Company Introduction
Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough, In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
