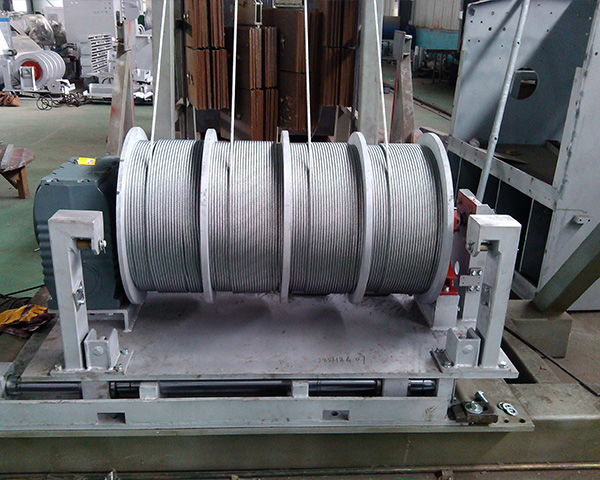

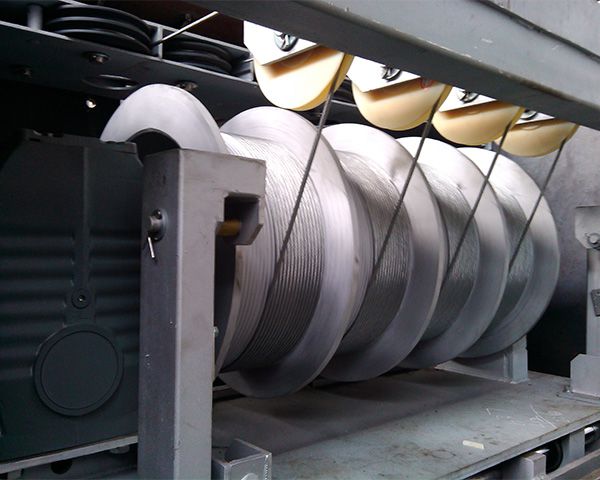

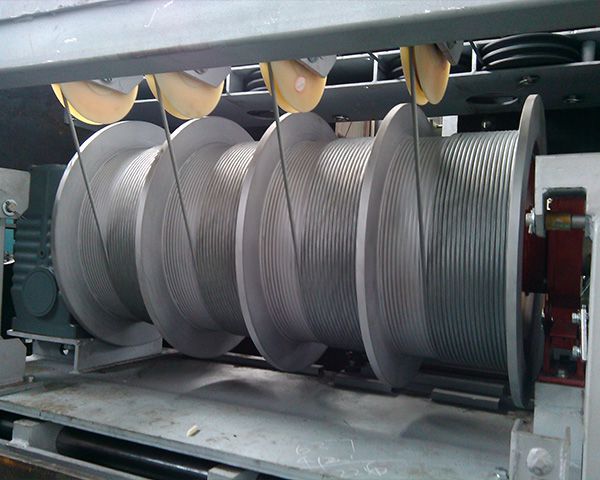

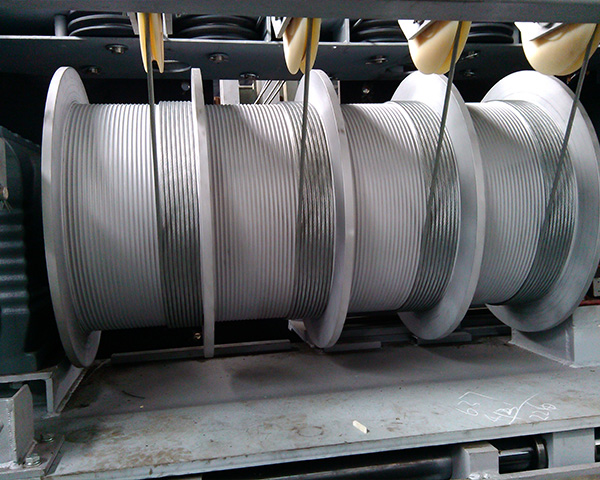

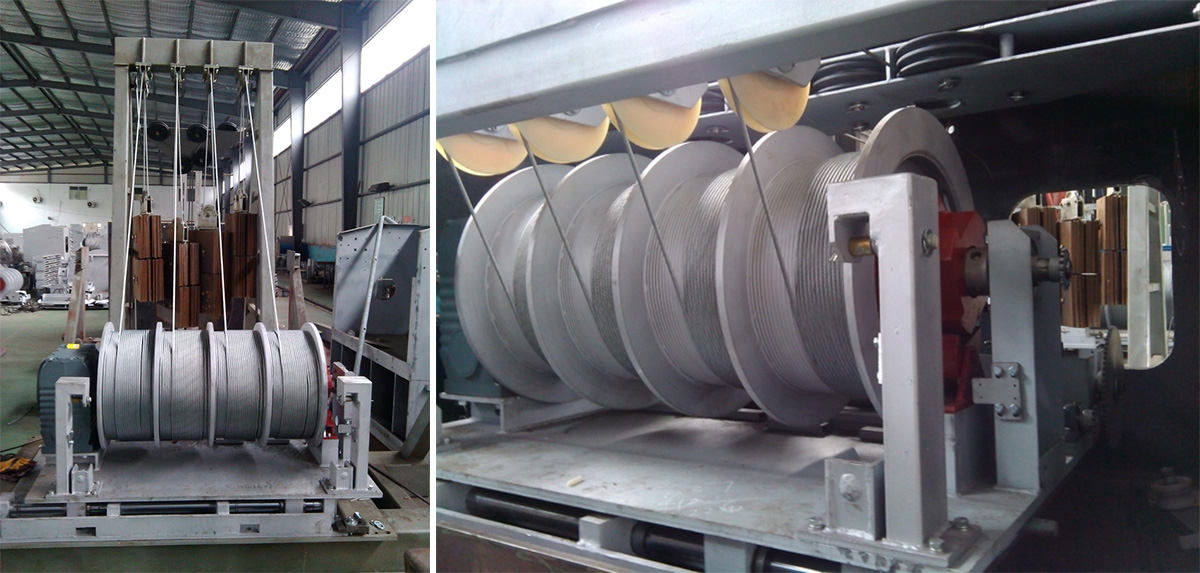

We also supply LBS grooved drum used in all kinds of winchs. The whole drum details as follows:
1. The groove is cut directly into the body of drum.
2. According to the customer' requirements, the flanges are either welded or screw-bolted.
3. The groove is available as either LBS-groove or helical-groove.
4. Groove geometry is determined by rope construction, diameter and length, and by application.
5. The drum is provided with the requested mounting dimensions to fit the flanges by welding or screw bolting.
Other products
Sleeves are used to prevent damage to a drum. It is usually cheaper to replace a worn out sleeve in stead of replacing or repair the complete drum assembly.
The LBS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. either LBS parallel grooves can be carved into sleeves. As with all LBS drums, the grooving in split sleeves is engineer to much the specific rope construction, diameter and length, and to suit
We can design the LBS sleeve according to the drum's size and parameter.So the customer need to provide some paramter as follows:
| The drum's outer diameter | LBS sleeves diameter |
| Width between the flanges | 320mm 550mm or as your requirement |
| The rotation direction | Left or right |
| Wire rope diameter and structure | 22mm 33mm or any others |
| The material | Q345B or high strength steel |
| The surface hardness | As your requirements |
Our Equipment
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
About Us
Shijiazhuang Junzhong Machinery Manufacturing Co., Ltd. was established in 2010 with a registered capital of 18 million yuan.
The company is a long-term engaged in cable retracting system of scientific and technological production enterprises in the multi-layer winding of wire rope has a profound foundation and production experience.
As early as 2010, the company obtained the utility model patent certificate suitable for multi-layer winding double folding cable groove, and registered the LBS trademark in 2013.
Passed iso9001:2015 quality management system certification in 2017;
In 2018, it passed the GJB9001C-2017 weapon equipment quality management system certification.
In 2019, the company was identified as a science and technology smes in Hebei Province.
In recent years, the company with strong technical strength, advanced production equipment, strict quality control system, achieved rapid development.
