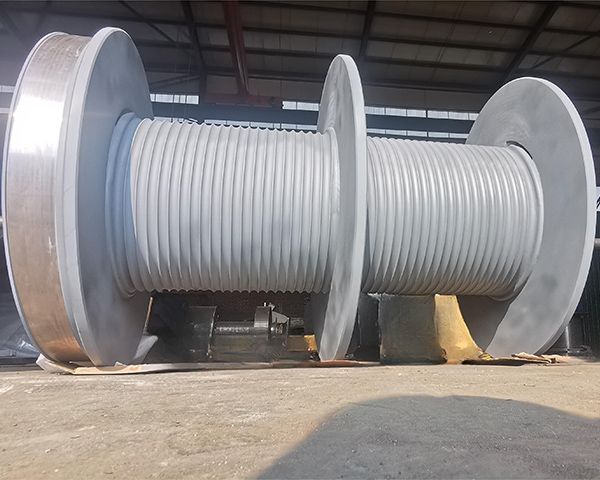

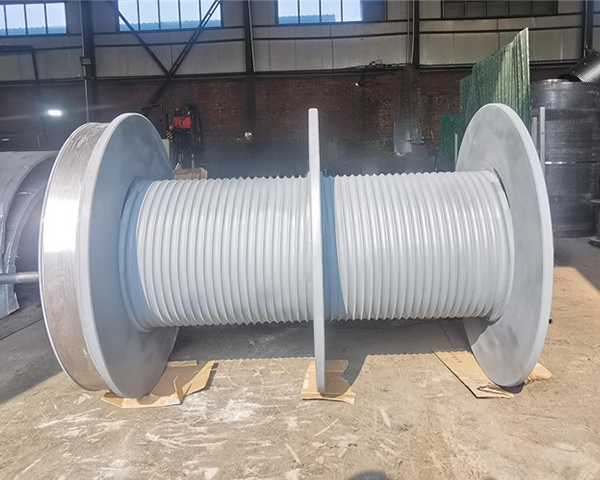

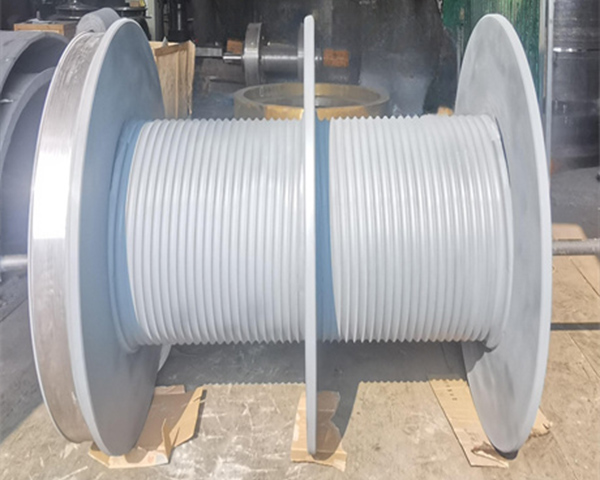

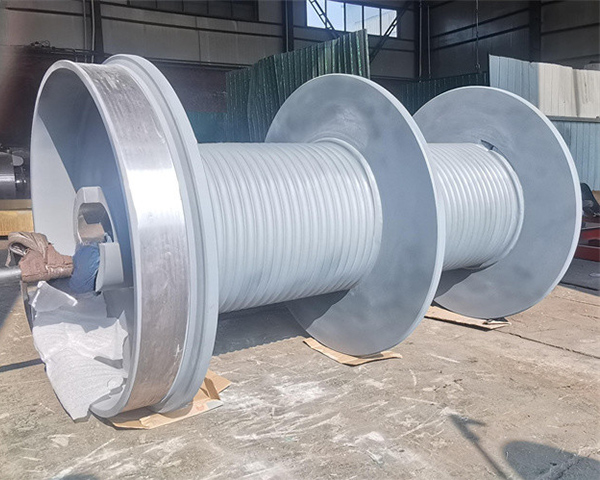

Our Rope Winch Drum is an essential component for winch and hoist machines. It is available in both single and double drum configurations, This grooved double drum is custom made for shipyard deck cranes, with a rope capacity of 3000m. Additionally, our winch drums come in a variety of sizes ranging from 100mm to 2500mm, and feature a grooved design for increased rope capacity. Our drums also feature the LBS system, allowing for easy layering and organization of ropes.
Product Details
| Product name | LBS rope grooved double winch drum |
| Drum Quantity | Double |
| Drum Design | LBS Groove |
| Material | Carbon Stainless |
| Size | 2500mm length |
| Application Range | offshore |
| Power Source | Electric and hydraulic |
| Rope Capacity | 300M |
Features
· Product Name: Double Winch Drum
· Rope diameter: 3mm-80mm
· Slot direction: Left Or Right
· Customize or not: Can Be Customized
· Category: Winch Parts
· Use: Winding Wire Rope
· LBS system: Can be applied for winding wire rope
· Grooved cylinders: Grooving the rope into the drum
· Wound wire rope: Winding wire rope with the winch drum
Product Application
The LBS GROOVED Rope Winch Drum can be used for multiple purposes such as winding rope, winch drum, and winch parts. It can also be used as a hoist or winch for lifting heavy objects. Its high quality material ensures that it is durable and long-lasting, The design of the LBS rope groove ensures that the rope is wrapped in multiple layers without confusion during the winding process, which increases the service life of the rope, greatly improves the efficiency and saves the cost，making it a perfect choice for any project.
Necessary parameters for production
1. Drum diameter:
2. Width between flanges:
3. Rope or cable diameter:
4. Length of rope or cable to be accommodated:
5. Direction of wire rope entry:
6. Outside diameter of flanges:
7. Type of rope entry through flange or Through barrel:
8. Material and requirements of the drum
9. A detailed drawing of the drum if possible:
