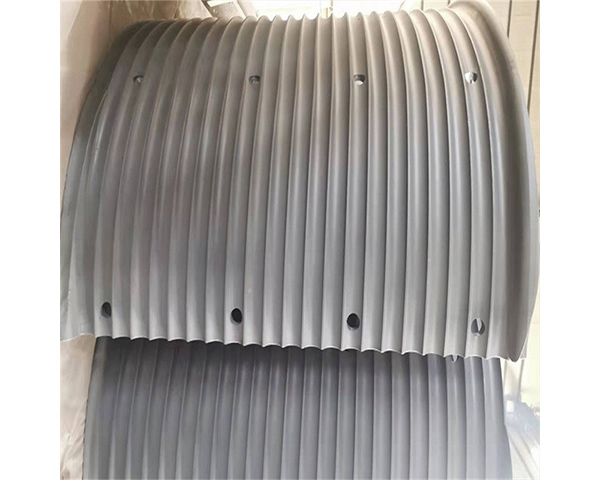

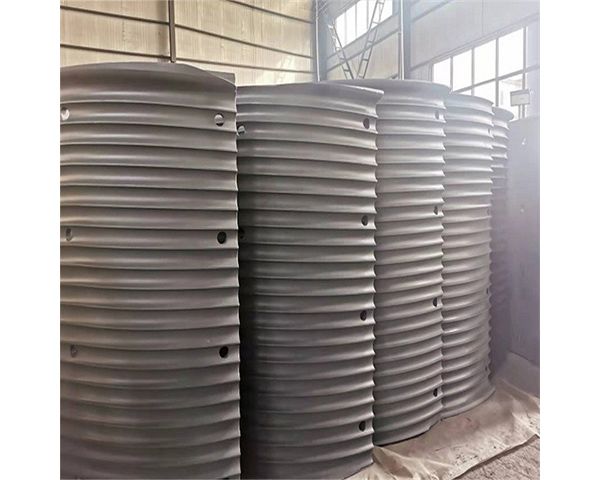

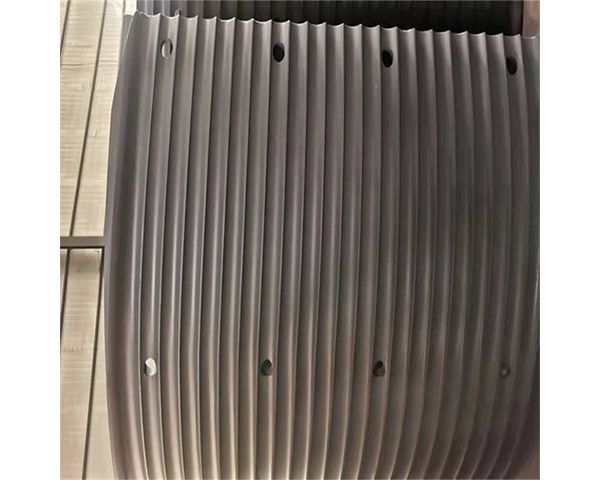

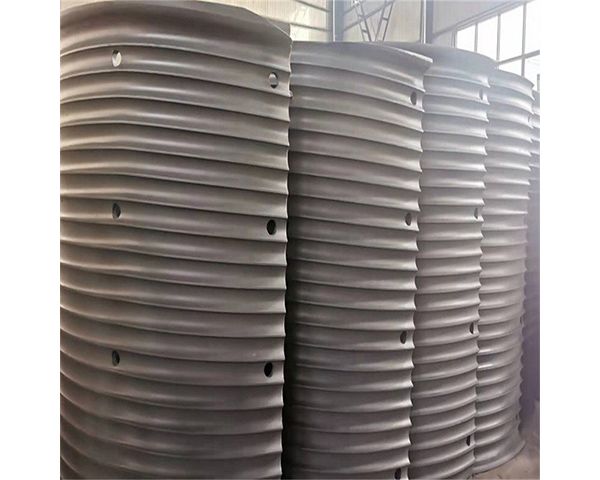

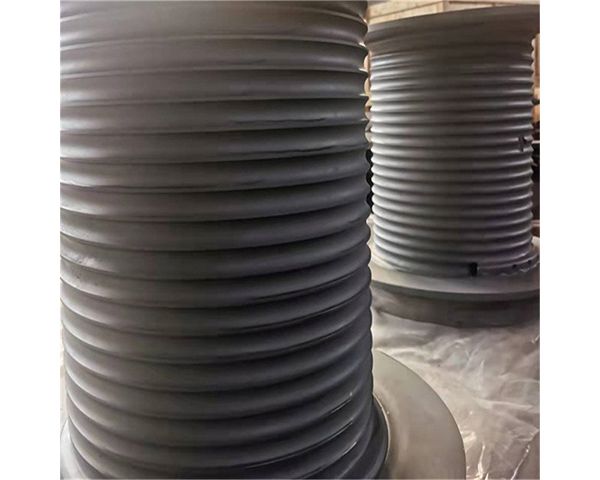

The LBS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. Either helical or LBS parallel grooves can be carved into the sleeves.
As with all LBS drums, the grooving in split sleeves is engineered to match the specific rope construction, diameter and length, and to suit the application.

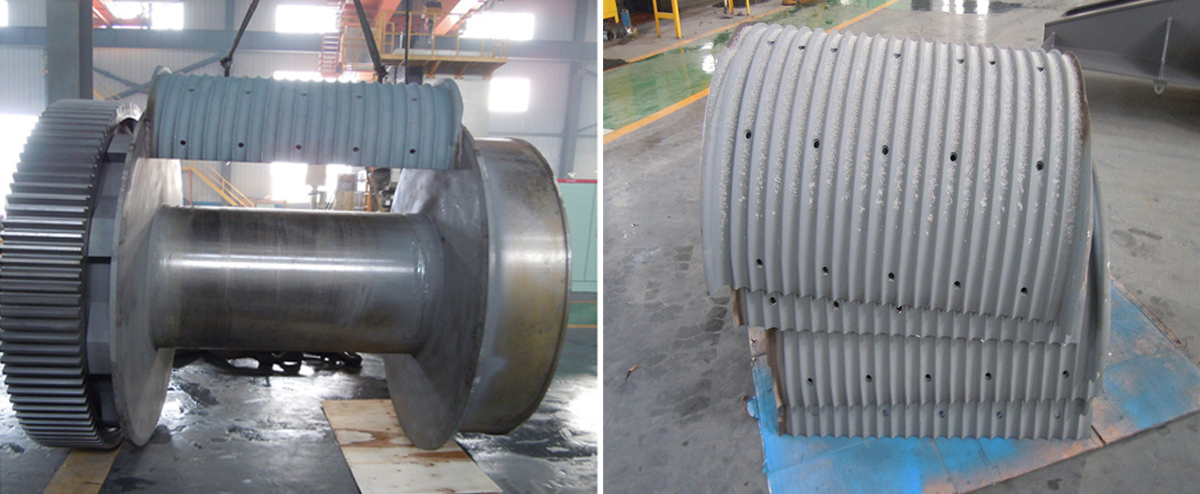

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of LBS double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.
Product lookview
| Product Name | multi-layer wire rope of cable onto hoisting drum spooling system LBS sleeves |
| Product Other Name | LBS groove sleeve |
| Processing Equipment | CNC machining center |
| Drum Groove Rotation | Lefthand ,Righthand |
| Sling Type | Wire rope or cable |
| Rope Capacity | 50-1000M |
| Product Other Name | LBS groove drum or wire rope drum |
| Materail | High polymer nylon or carbon steel |
| Grooving Type | LBS groove |
| Warranty | 1year |
Technical parameters and application
| No: | Wire diameter(mm) | Rotation direction | Main drumdiameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand, Righthand | 430 | 763 | The oil workover rig winch,Towing winchTower crane |
| 2 | 13 18 20 | Lefthand, Righthand | 623 | 1144 | Engineering winch, Lifting winch, Crawler crane |
| 3 | 22 25 26 | Lefthand, Righthand | 730 | 1220 | Mining winchLogging Winch |
| 4 | 18 22 32 | Lefthand, Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand, Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand, Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane, Mooring winch |
Why choose us
Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience.
Imported equipment
We have the world's advanced production equipment.
Fast lead time
Small and medium orders can be delivered within 20 days, large orders 30-35 days.
One-stop service
We provide production operations and assembly services.
High quality and factory price
We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise.
